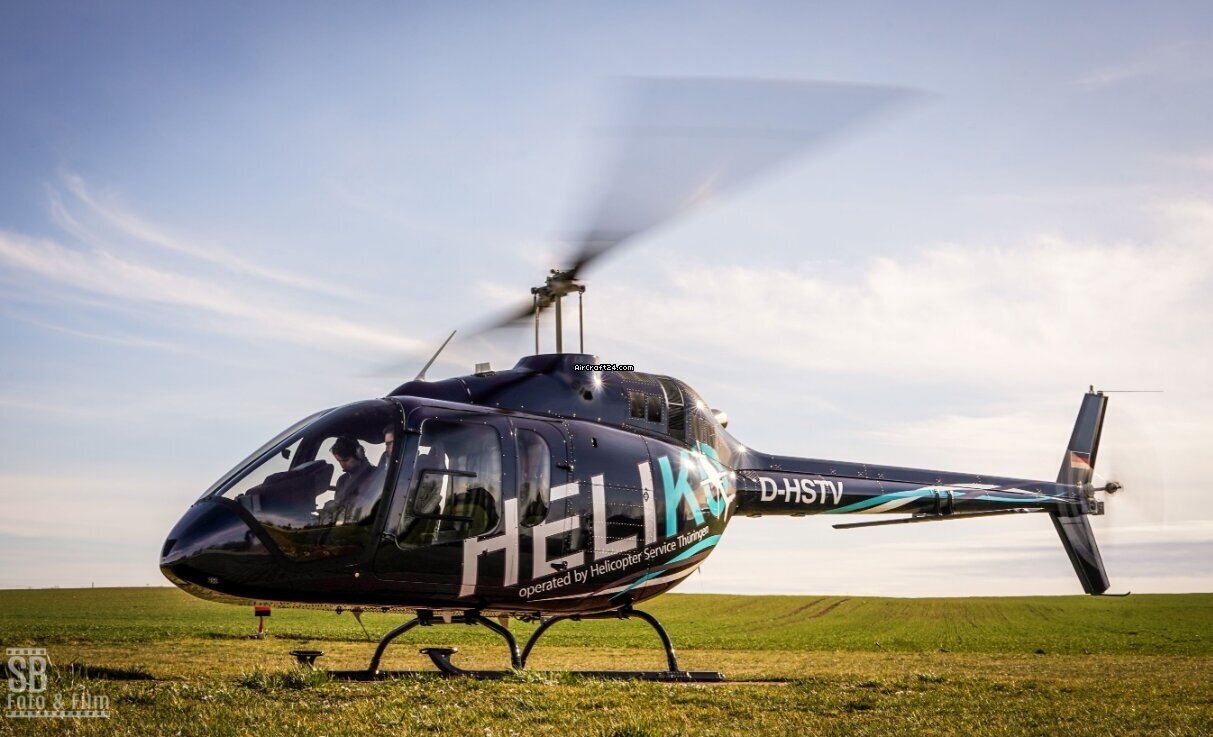

Bell 505 Jetranger X |
€ 1.230.000 |
Overview
| Base data | | Type: | Helikopter | | Producent: | Bell | | Model: | 505 Jetranger X | | Bouwjaar: | 2018 | | Registration No.: | D-HSTV | | Serial No.: | 65079 | | Location: | Duitsland | | Total Time (TTAF): | 1100 h | | Prijs: | € 1.230.000 | | EU VAT paid: | yes | | VAT stated sep.: | no | | Full details |
| Aanbieder |
777 Aircraft Sales
julian Appel
Am Hang 6
86570 Inchenhofen
Duitsland
Tel: +49 15678 878339 |
| Contact seller |
|
|
|
Full Details
| Base data | | Type: | Helikopter | | Producent: | Bell | | Model: | 505 Jetranger X | | Bouwjaar: | 2018 | | Registration No.: | D-HSTV | | Serial No.: | 65079 | | Location: | Duitsland | | Total Time (TTAF): | 1100 h | | Prijs: | € 1.230.000 | | EU VAT paid: | yes | | VAT stated sep.: | no | | No. of passengers: | 4 | | Landings: | 19624 |
| Engine(s) | | Number of engines: | 1 | | Make/Model: | Arrius 2R | | Power: | 505 PS | | Total Time: | 1100 h |
| Description/Details of engines | CENTRIFUGAL COMPRESSOR - 95,41% 26715 cy
GAS GENERATOR TURBINE - 14715 cy
POWER TURBINE DISC REMANING - 97,78% 13689 cy
REDUCTION GEAR MODUL - 63,33% 1.900 h
GAS GENERATOR MODUL - 63,33% 1.900 h
PUMP AND METERING VALVE - 63,33% 1.900 h
PUMP AND METERING VALVE - 1.536month
HP PUMP ASSY - 74,42% 3.200 h
PREF: INJECTOR PIPE - On Condition
FUEL INJECTOR PIPE LH - 27,25% 109 h (REPLACEMANT EVERY 400h)
FUEL INJECTOR PIPE RH - 27,25% 109 h (REPLACEMANT EVERY 400h)
DRIVE GEAR BEARING - 84,29% 5.900 h
DRIVE GEAR BEARING - 84,29% 5.900 h
INTERMEDIATE GEAR - 84,29% 5.900 h
INTERMEDIATE GEAR - 84,29% 5.900 h
INTERMEDIATE GEAR - 84,29% 5.900 h
GAS GENERATOR BLADE - 81,67% 4.900 h
GAS GENERATOR BLADE - 93,58% 18.715 cy
POWER TURBINE BLADE - 97,78% 13.689 h |
| Interior | | color: magic blue with removeable sticker (HELIKO) |
| Inspection Status | - fresh 6 year + 3 year + 2 year + anual inspection ! (major inspection)
- rotor brake
- dual controls
- Second VHF radio
- Radar Altimeter
- Avionics Upgrade Package (Sysnthetic View, HTAWS, TAS, VOR/ILS)
- on Bord WiFi / Digital Audio Broadcast (DAB) Entertaiment System
- operator confinience Package (cover cabin, blade strap, cover turbine outlet/intake)
- ground handling wheels
- groundhandling equipment (tow bar)
- VIP configuration (leader seat, head cushion, floor carpet, pilot equipment storeage)
- sliding Windows (Doors)
- always hangared
- CAMO oversighted (all ADs/SBs carried out)
- GARMIN 1000 database always updated
- all service carried out
- PILOT TRAINING (RATING) INCL. in PRICE
- IMMEDIATE AVAILABILITY |
| Opmerkingen | AIRFRAME
REMAINING TIMES
M/R HUB ASSY - 1.300 h
M/R TRUNNION - 19624 LDG
M/R GRIP ASSY - 2.600 h
M/R GRIP ASSY - 3.700 h
STRAP FITTING - 1.300 h
STRAP FITTING 1.300 h
STRAP PIN - 100 h
STRAP PIN - 100 h
TT-STRAP - 600 h / 17month (24 MONTH VERSION)
TT-STRAP - 600 h / 17month ((24 MONTH VERSION)
LATCH BOLT - 100 h
LATCH BOLT - 100 h
M/R BLADE - 2.900 h
M/R BLADE - 2.900 h
SWASHPLATE - 3.700 h 3.800 h
SWASHPLATE SUPPORT - 13.300 h
SWASHPLATE SLEEVE - 13.300 h
COLL. IDLER LINK -13.300 h
COLL.LEVER - 13.300 h
PILOT COLLECTIVE STICK - 5.461 h (CHANGED AFTER ALERT SERVICE BULLETIN - ASB)
MAST ASSY - 2.000 h
MAST - 4.400 h
MAST - 39624 LDG
MGB - 3.500 h
FREEWHEELING ASSY - 2.000 h
T/R GEARBOX - 5.000 h
T/R DUPLEX BEARING - 1.900 h
T/R HUB ASSY - 1.500 h
T/R YOKE - 3.900 h
T/R BLADE - 1.400 h
T/R BLADE - 1.400 h
MAIN DRIVESHAFT - 1.000 h
BRAKE CALIPER - 800 h
BRAKE CALIPER - 800 h
HYDRAULIK PUMP - 1.400 h
STARTER GENERATOR - 236 h (CHANGED ON WARANTY) (REPLACED WITH 3rd GENERATION)
ELT BATTERY - 33month
ELT REMOTE BATTERY - 115month
ELT BUZZER BATTERY - 115month
FIRE EXTINGUISHER - 65month
STANDBY ATT. Battery - 67month
LIVE MOUNT ASSY RH - 1.900 h
LIVE MOUNT ASSY RH - 15624 LDG
LIVE MOUNT ASSY LH - 2.136 h (CHANGED ON WARANTY)
LIVE MOUNT ASSY LH - 16358 LDG
LIVE MOUNT ISOLATOR ASSSLYS - 1.900 h
LIVE MOUNT ISOLATOR ASSSLYS - 15624 LDG
HORIZONTAL STABILIZER - 20.900 h
TAIL CONE ATTACHMENT - 1.900 h
TAILCONE ASSY - 12.900 h
MECHANICAL TRUSS - 1.900 h
CROSSTUBE ASSY FWD - 17624 LDG
CROSSTUBE ASSY AFT - 2124 LDG
SKID TUBE ASSY - 2124LDG |
